1000ft Shielded Cat5e Network Cable Outdoor CCA 24 AWG FTP Wire Solid Direct Burial UV

Product Categories
SHENZHEN BLG DIGITAL NETWORK CO., LIMITED
Contact Now

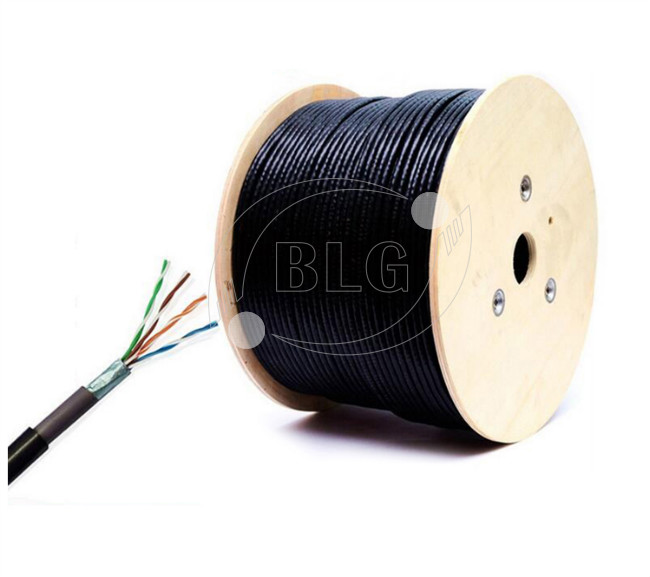

1000ft Shielded Cat5e Network Cable Outdoor CCA 24 AWG FTP Wire Solid Direct Burial UV

  • 1
  • 2

Brand Name : BLG/OEM

Model Number : Outdoor Cat5e Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 50 rolls

Price : Nigotable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 container /week

Delivery Time : 7-15days

Packaging Details : 1) Lenght :1000ft per roll; 2) Packing: box +carton.

Item Name : Outdoor Cat5e cable

Conductor OD. : 24 AWG

Material : CCA

Shlieded : Al-foil

Jacket : PVC+PE

Package : 305M/500M/1000M

Contact Now

CAT5e Cable 1000ft Shielded Outdoor CCA 24 AWG Cable FTP Wire



Solid Direct Burial UV



· 24AWG 4 shielded twisted pairs.



· FTP (SHIELDED), Outdoor, Direct Buria

l

· Copper Clad Aluminum



· Wooden Spool in a box with multi-conductor cable reduces need to pull multiple wires for easy installation



· Solid core conductors for long runs performance

·



No. of Core  8 number
Conductor  Material  CCA (Copper Clad Aluminum)
 Construction  1/0.50 ± 0.002mm
Insulation  Material  HDPE
Filler  None
Shield  Material  Mylar+Al-foil
 Braiding  None
Drain Wire  Material  0.4mm CCS
Rip Cord  Nylon
Jacket  Material  PVC+PE
 O.D.  5.6 ± 0.30mm
 Color  Black
Marking  Customized
Length  1000ft(305m)
Package  Wooden Reel
Temperature Rating  60℃
Operating Temperature   -20℃ ~ 80℃
Voltage   30V



Application:



PBX, V.11, X.21, ISDN, Ethernet (10Base-T), ATM-25/52/155 Mbit / s, 100VGAnyLAN,

Fast Ethernet (100BASE-TX), Token Ring 16/100 Mbps, Firewire

100 Mbps, 100 Base-T4, 100 Base-TX, 155 Mbps ATM, 622 Mbps ATM



Laying and operation conditions

For stationary laying inside buildings, stations, structures,

equipment in conditions of increased electromagnetic effects.

Operates at frequencies up to 200 MHz.



1000ft Shielded Cat5e Network Cable Outdoor CCA 24 AWG FTP Wire Solid Direct Burial UV

1000ft Shielded Cat5e Network Cable Outdoor CCA 24 AWG FTP Wire Solid Direct Burial UV

1000ft Shielded Cat5e Network Cable Outdoor CCA 24 AWG FTP Wire Solid Direct Burial UV
