Simplex Single Mode Fiber Optic Patch Cord Low Insertion Loss 0.9mm

Name: Simplex Single Mode Fiber Optic Patch Cord Low Insertion Loss 09mm
Brand: BLG/OEN
Price: 1 USD

Buy cheap Simplex Single Mode Fiber Optic Patch Cord Low Insertion Loss 0.9mm product

Brand Name : BLG/OEN

Model Number : Fiber Pigtail

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 500pcs

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000PCS/WEEK

Delivery Time : 7 days after receiving the payment

Packaging Details : 1)PE plastic bag+outer carton; 2) Blister+outer carton

Polishing : LC APC, SC UPC

Transfer Mode : Multimode

Fiber classes : OM2, 50/125 μ

Material : LSZH/PVC

Connector : LC, SC

Diameter : 2.0mm

Contact Now

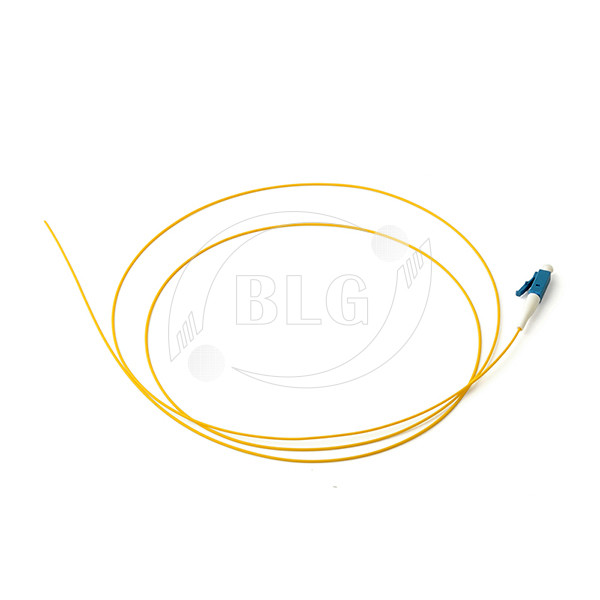

0.9mm Simplex Fiber Pigtail LC SC FC ST Single-mode

Multimode Fiber Optic Jumper

1. Technical performance

Cable Diameter: 2.0mm

Insertion Loss: ≤ 0.3dB

Return Loss: ≥ 50dB

Operating temperature: -40℃ up to +75℃

Storage temperature:-40℃ up to +75℃

2. Feature

1). Low Insertion loss

2). High return loss

3). Good Repeatability

4). Good Interchange

5). Excellent Environmental Adaptability

3. Application

1). Communication rooms

2). FTTH (Fiber to The Home)

3). LAN (Local Area Network)

4). FOS (fiber optic sensor)

5). Fiber Optic Communication System

6). Optical fiber connected and transmitted equipment

7). Defense combat readiness

4. Specification

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Simplex Single Mode Fiber Optic Patch Cord Low Insertion Loss 0.9mm
