GYTA GYFTY Stranded Bulk Fiber Optic Cable With Multi Cores Single Mode

Name: GYTA GYFTY Stranded Bulk Fiber Optic Cable With Multi Cores Single Mode
Brand: BLG/ OEM
Price: 1 USD

Buy cheap GYTA GYFTY Stranded Bulk Fiber Optic Cable With Multi Cores Single Mode product

Brand Name : BLG/ OEM

Model Number : GYTA/GYFTY Optical Fiber Cable

Certification : CE/ROHS/ ISO

Place of Origin : China

MOQ : 5000meters

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 container per week

Delivery Time : 7~10days

Packaging Details : wood drum or as customized.(standard:2KM~4KM/drum)

Cable type : Outdoor cable

Core : 2 to 288

Fiber : G652D 9/125UM

Material of jacket : Black Polyethylene (PE)

Installation tensil : 1500N

Application : Aerial and Duct

Contact Now

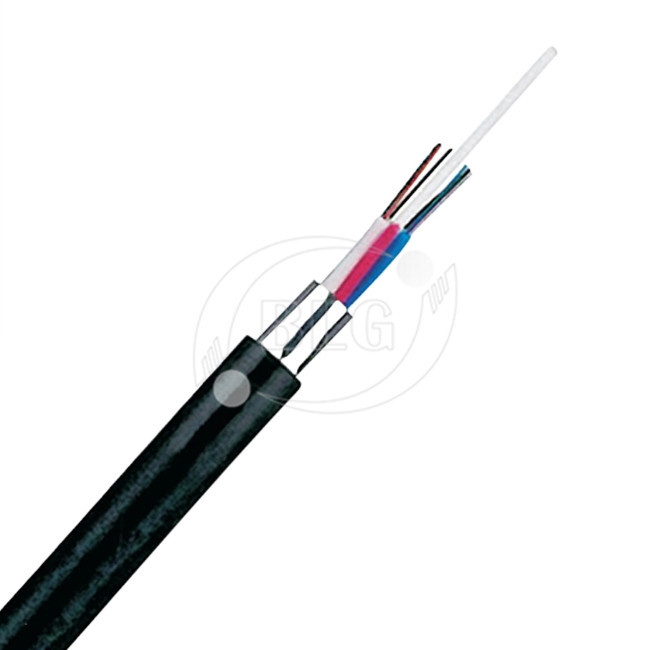

GYTA GYFTY Fiber Optic Cable Mutils Core Single Mode Stranded Loose Tube

Armored

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. We

supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable,

fiber strand from 2 cores to 432 cores. A related GYTA type cable is available.

Applications

These corrugated steel tape armored cables are suitable for installation in aerial or

duct environment for long haul communication, LAN, especially suitable for the situation

of high requirements to lateral pressure resistance.

Features

Up to 144 fiber cores.

The loose tube stranding technology make the fibers have good secondary excess

length and allow. The fibers free movement in the tube, which keeps the fiber stress-

free while the cable is subjected to longitudinal stress.

Corrugated steel tape armored and PE outer sheath providing property crush

resistance and gun shot resistance features.

Metal strength member provides excellent strain performance.

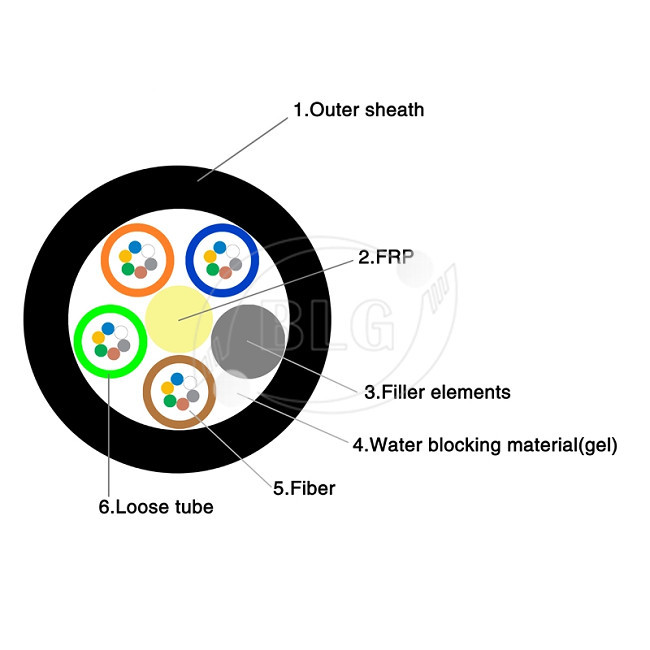

Item	Contents	Value
	Fiber Count	4~12	24	48	72	96
Loose Tube	No.of tubes*fibers per tube	1	2*12	4*12	6*12	8*12
	Outer Diameter(mm)	1.9	2
Central Strength Member	Material	FRP
	Diameter(mm)	0.8~1.2
Moisture-proof	Material	Cable filling compound
Armor	Material	Laminated aluminum tape
Sheath	Thickness(mm)	Nominal:1.8
Cable Diameter(mm)Approx		10.0~13.5
Cable Weight(KG/KM)Approx		80~160
Operating Temperature Range(℃)		—40~+70
Tensile Strength Short/Long Term(N)		2000/600
Crush Resistance Short/Long Term(N/100mm)		1000/300
